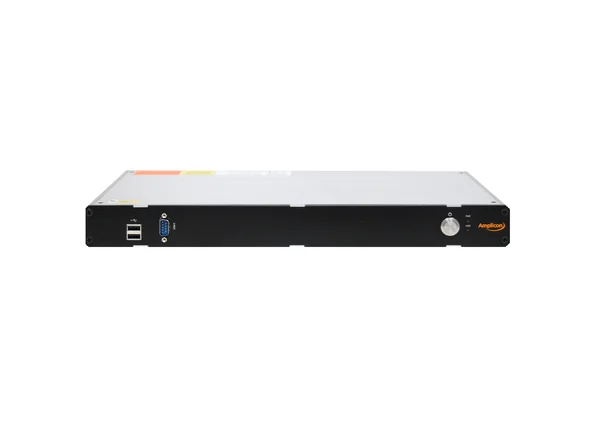

Impact-R 1212F - 97221580
Fanless Iot Edge ready PC with Atom x6425E, 8GB RAM 128GB SSD, 6 x RS232/422/485, 4 x RS232
- Intel® Atom™ Elkhart Lake processors
- Ultra short depth (184.50mm)
- Up to 32GB DDR4 RAM
- IoT Edge Ready
- Up to 10 Serial ports
The Amplicon Impact-R 1210F 'IoT edge ready' Industrial PC is an ultra short-depth rack system, completely fanless and powered by the Intel® ATOM™ Elkhart Lake processor.
With an ultra short 184.50mm depth, this industrial PC is ideal for applications requiring a short depth cabinet or where space is a premium allowing you to mount other devices behind the Impact-R 1210F models.
With options for multiple serial communication ports, the Impact-R 1210F can offer up to a total of ten DB9 ports with a mixture of RS232/422 and RS485, allowing for true flexibility as well as legacy support.
Options for cellular and WI-FI gives the Impact-R 1210F series the ability to gather and process data almost anywhere, allowing the implementation of edge technology projects.
The Impact-R rackmount PC utilises industrial components, which provide revision control. Our production processes are controlled under ISO 9001:2015 with every system undergoing a full diagnostic burn-in test prior to shipment.
- Chassis Size
- 1 U
- CPU
- ATOM®
- Memory
- 8 GB
- OS Support
- Windows 10
- Windows 10 IoT
- Windows 11
- Linux
- Expansion
- M.2
- Storage
- 128GB SSD
- Memory Type
- DDR4
- CPU Generation
- Elkhart Lake
- CPU Cores (Physical)
- 4
- Type of Serial Ports
- RS-232
- RS-422
- RS-485
- Max Memory
- 32 GB
- Max Operating Temperature
- 60 °C
- Mounting
- Rack / Rackable
- Chassis depth
- Shallow depth
- Brand
- Impact-R
- Impact-R 1212F Datasheet
- Datasheet 1010.15 KB
