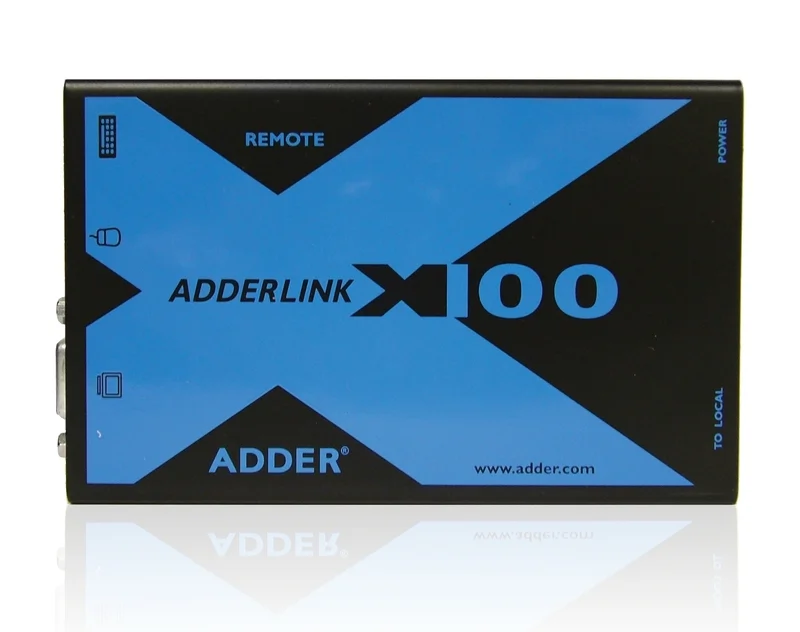

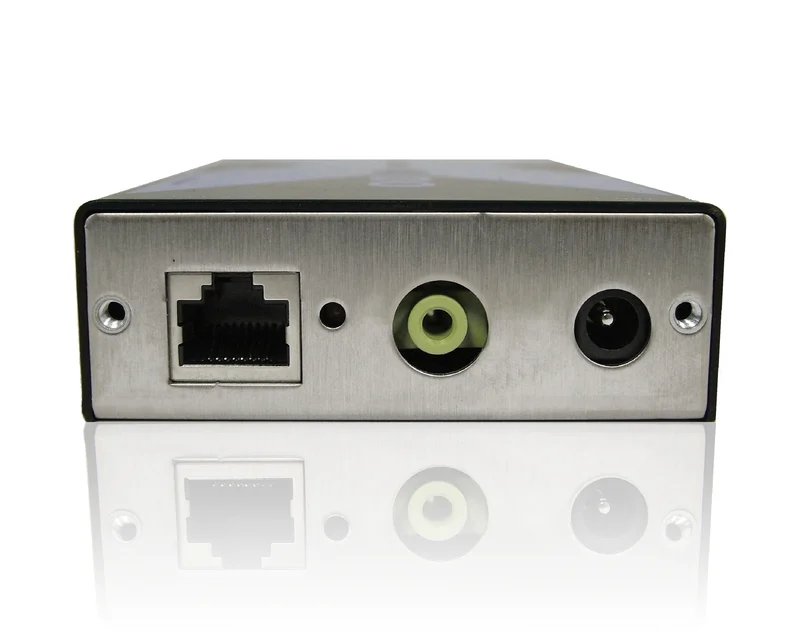

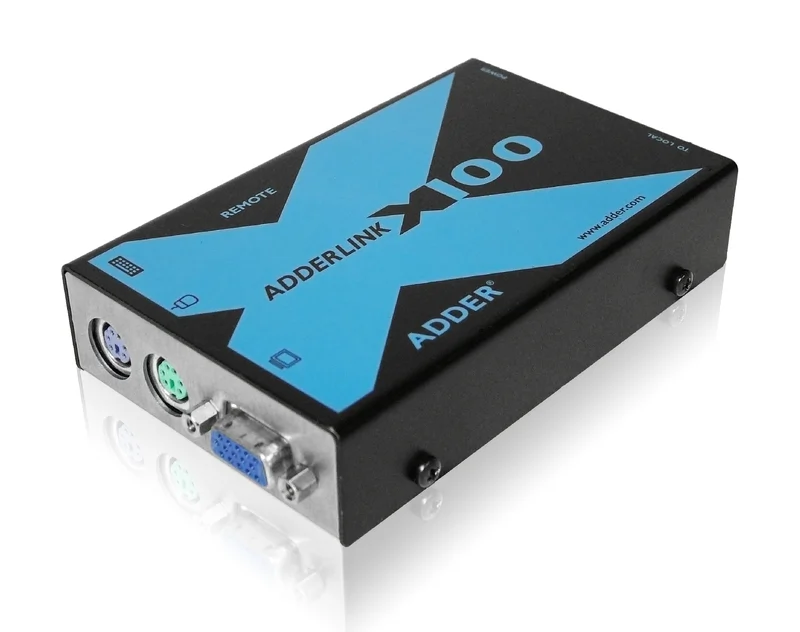

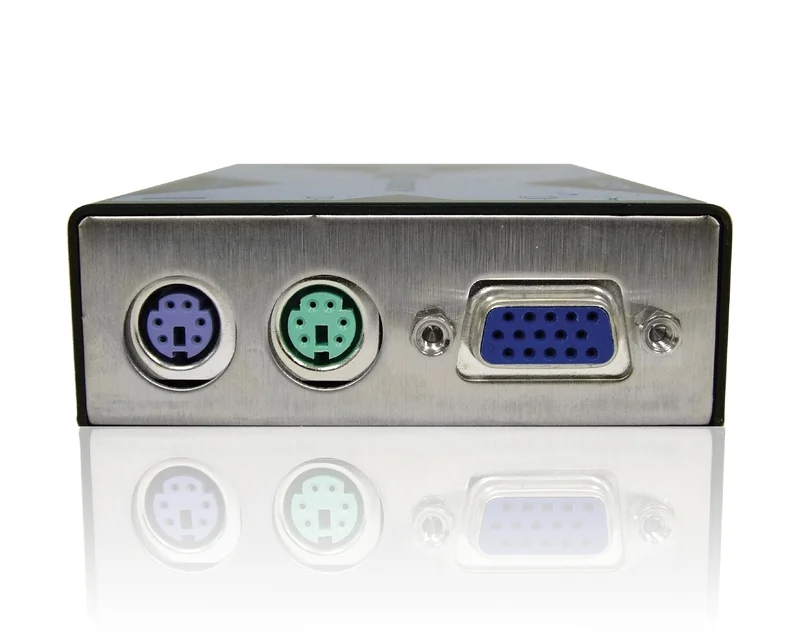

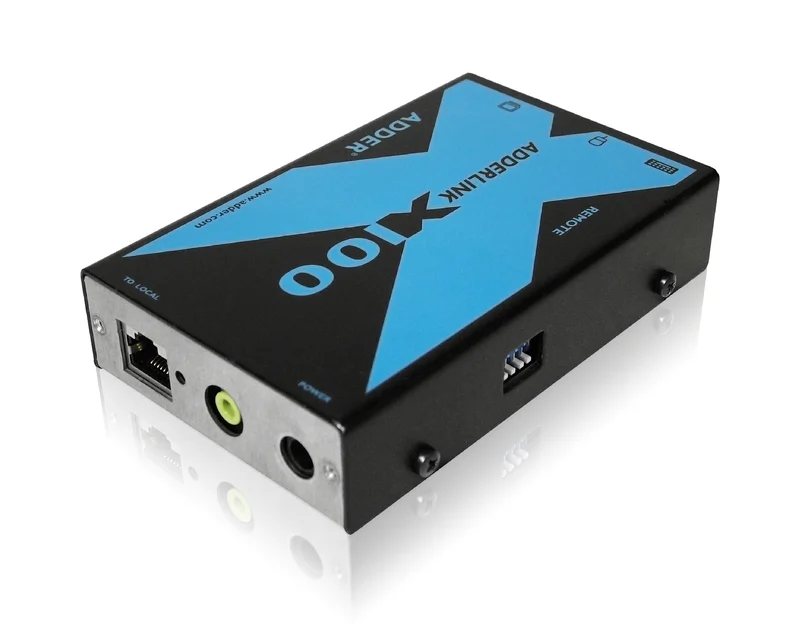

AdderLink X100 series
Extenseur Audio/Vidéo/ + PS/2 KB+M
- Extends a video signal across CATx cable (optional audio)
- PS/2 and USB keyboard and mouse support
- High resolution video quality (up to 1600 x 1200 @ 100m or 1900 x 1440 @ 50m)
- Distances up to 100m
- Receivers with dual video and audio outputs
- Use as stand alone or rackmount 16 modules across 3U
- All metal construction
The AdderLink X100 allows for the transfer of video, audio, and PS/2 keyboard and mouse over a standard CAT5 (or higher) cable.
The X100 applies signal compensation and extends to distances up to 100m from the computer / signal source. X100 products are all metal and can be used as standalone products or rackmounted in a 2U chassis.
Typical applications include remote connection to servers that might be in a noisy server room.
With all KVM products, Amplicon recommends the use of shielded CATx cabling.
- KVM Category
- Extend
- Distance
- 10 m
- 30 m
- 50 m
- 100 m
- Max Distance
- 100 m
- Connectivity
- VGA
- AdderLink-x100-datasheet
- Datasheet 293.17 KB
Models available (5)
AdderLink X100-PS2/P
Code 96080940
AdderLink X100-PS2/P X100R KVM receiver, CATX-PS2 access module
AdderLink X100A-PS2/P
Code 96080937
AdderLink X100A-PS2/P X100R KVM receiver + audio, CATX-PS2A moduleIEC PSU & UK
AdderLink X100AS/R
Code 96080938
AdderLink X100AS/R X100 KVM receiver with Audio and Skew
AdderLink X100A/R
Code 96080936
AdderLink X100A/R X100R KVM receiver with audio
AdderLink X100-USB/P
Code 96080941
AdderLink X100-USB/P X100R KVM receiver, CATX-USB access module
