Amplicon Impact-D 160A series
Embedded PC powered by Intel icore 6th gen Skylake processors, 0°C to 60°C
- Intel® Skylake™ Processing Power
- Cellular and Wi-Fi connectivity
- Compact Design
- Light Weight
- Customisable and FlexIble (Colour, Configuration and More)
- Designed, Manufactured and Built in the UK
The Amplicon Impact-D 160A fanless embedded PC features the Intel® Core™ i5-6300U Skylake generation processor, supported by high bandwidth DDR3L 1333MHz memory, and is a perfect solution for a DIN Rail PC.
With an extremely compact design weighing less than 1.4kg, this unit is ideal for installations where space is at a premium. The tiny footprint still allows for rich I/O along with added support for cellular and Wi-Fi connectivity options. All systems come with free software for remote access, monitoring and control.
The Impact-D 160A embedded PC system is suited to applications in markets such as transportation, security and automation.
Amplicon's systems are able to offer 5~15 year life cycle.
- CPU
- Core i5
- Memory
- 4 GB
- OS Support
- Linux
- Windows 10
- Windows 10 IoT
- Windows 7
- Expansion
- mPCIe
- Storage
- 64GB SSD
- Memory Type
- DDR3
- CPU Generation
- 6th (Skylake)
- CPU Cores (Physical)
- 2
- Max Memory
- 8 GB
- Mounting
- DIN Rail
- Wall
- Brand
- Impact-D
- Impact-D_162A
- Datasheet 2.20 MB
- Impact-E_D_T_P_roadmap
- Roadmaps 3.36 MB
Models available (2)

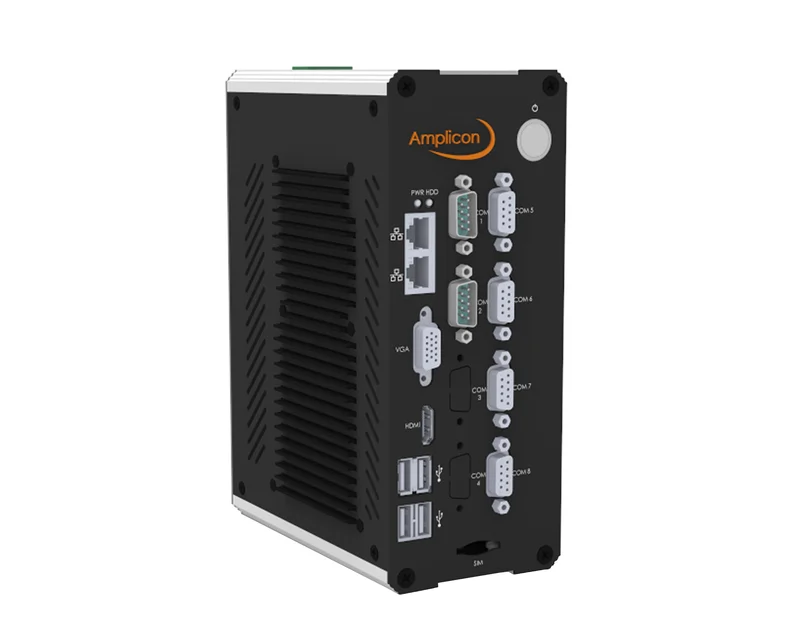

Impact-D 162A
Code 97220651
Intel® i-Core i5-6300U, 4GB DDR3L, 64GB SSD 6 x serial ports

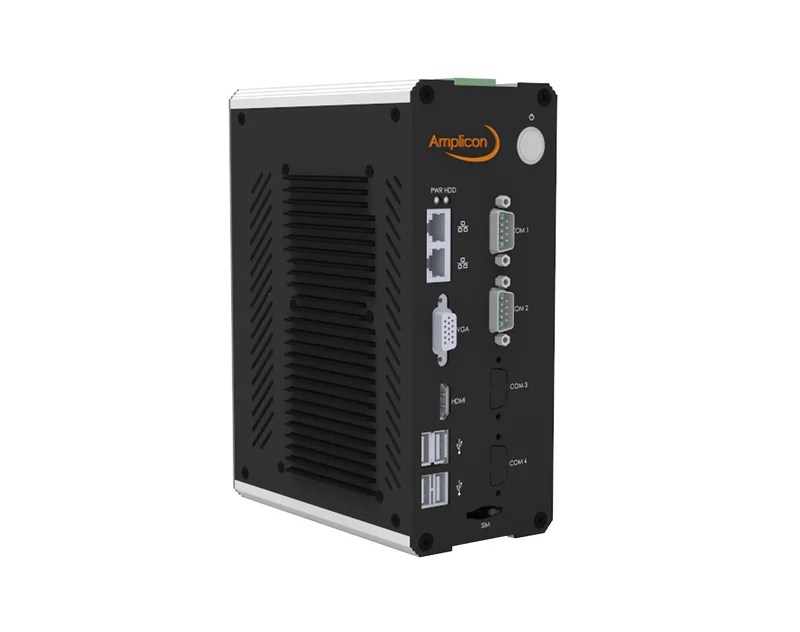

Impact-D 161A
Code 97220591
Embedded PC powered by Intel® i-Core i5-6300U, 4GB DDR3L, 64GB Industrial SSD
