Amplicon Impact-E 150AL series

High power embedded PC powered by Intel ATOM Apollo Lake processors, 0°C o 60°C

  • Intel® Atom™ Apollo Lake processors
  • Up to 16GB DDR3L Memory
  • Dual Monitor Support (DP++ & VGA)
  • mPCIe (full length)
  • M.2 (B key)
  • 15 year life cycle

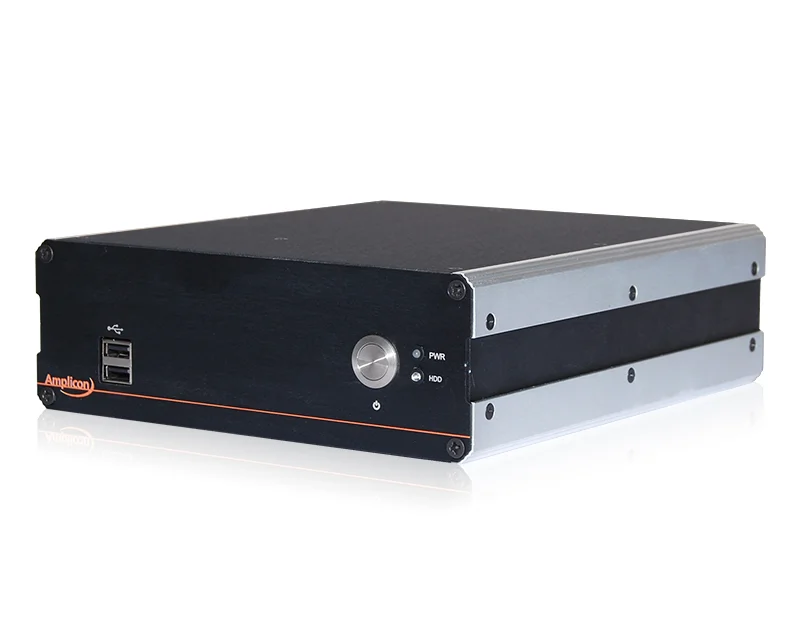

The Amplicon Impact-E 150AL Embedded PC is a completely fanless system powered by the Intel® ATOM™ Apollo Lake processors.

With multiple serial communication ports, the Impact-E 150AL can offer up to a total of six DB9 ports with a mixture of RS232/422 and RS485, allowing for true flexibility as well as legacy support.

The Impact-E series utilises industrial components, which provide revision control. Our production processes are controlled under ISO 9001:2015 with every system undergoing a full diagnostic burn-in test prior to shipment.

15 year life cycle.

CPU
ATOM®
Memory
2 GB
OS Support
Linux
Windows 10
Windows 10 IoT
Expansion
mPCIe
M.2
Storage
32GB SSD
Memory Type
DDR3
CPU Cores (Physical)
4
Max Memory
16 GB
Mounting
DIN Rail
Wall
Brand
Impact-E
impact-e_150al
Datasheet 1.41 MB
Impact-E_D_T_P_roadmap
Roadmaps 3.36 MB

Models available (1)
