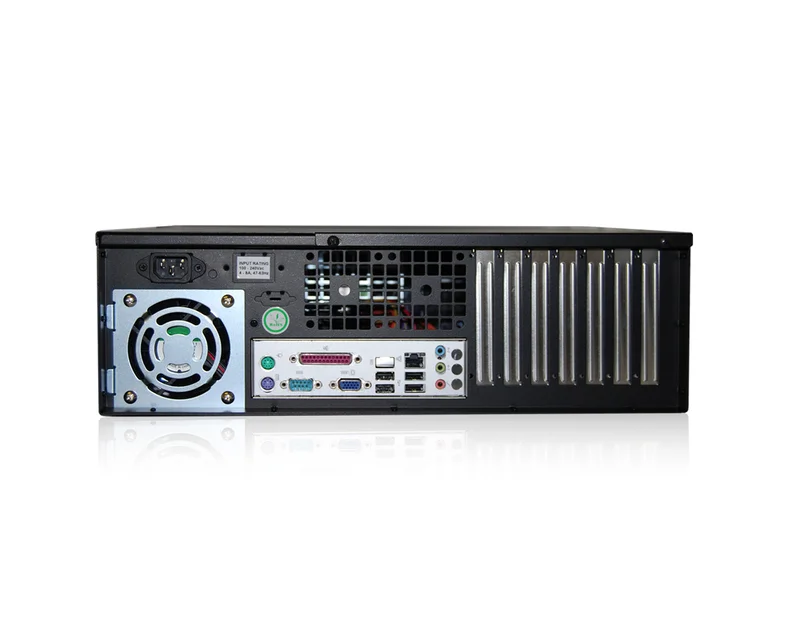

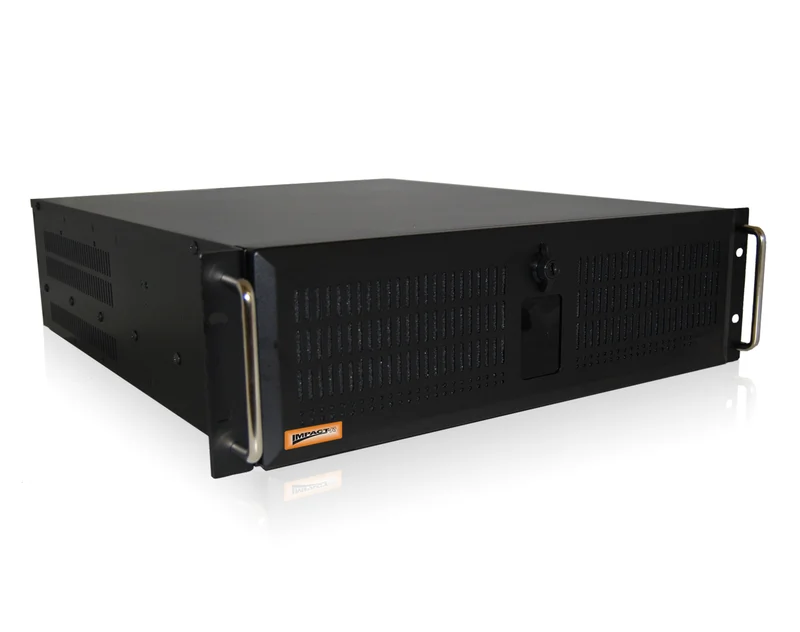

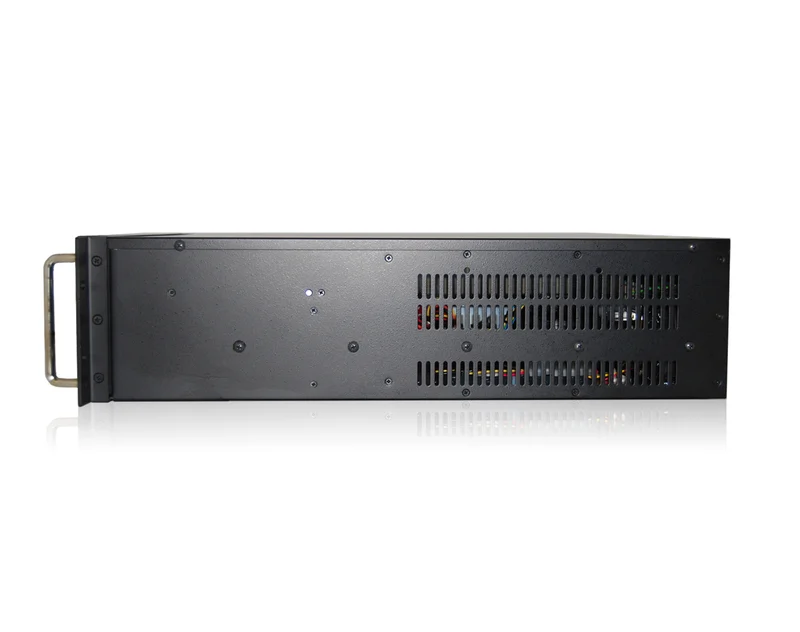

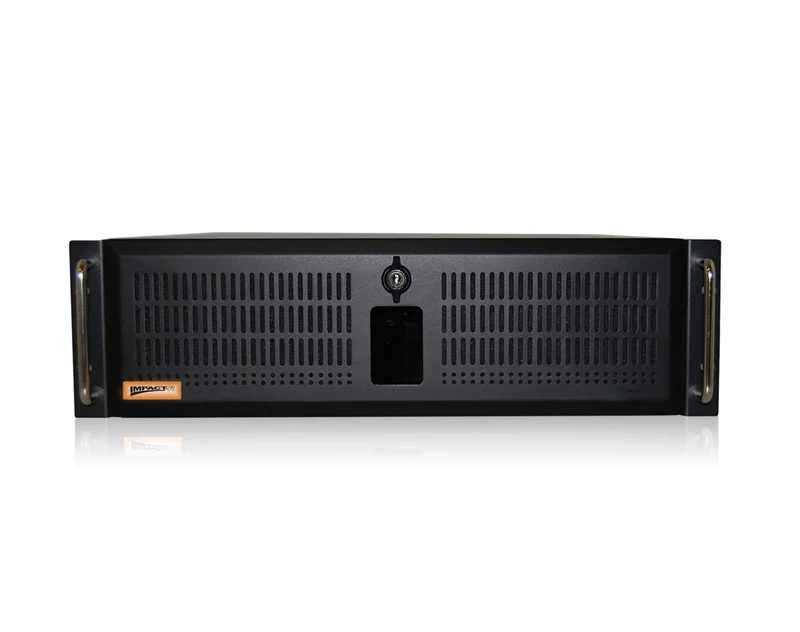

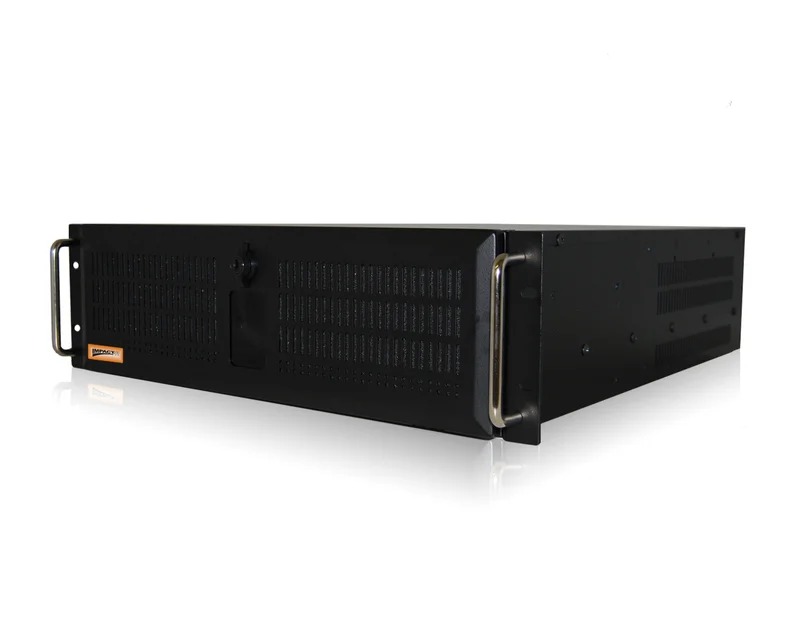

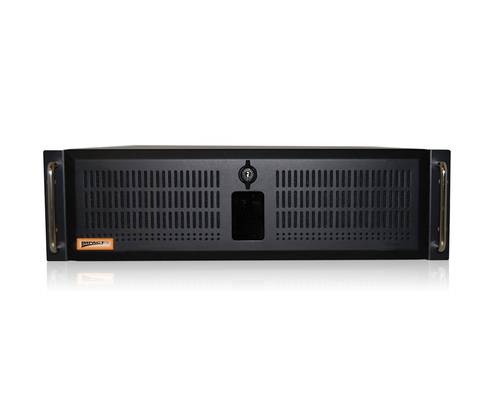

Amplicon Impact-R 3000 series

3U rackmount industrial motherboard based computer. Core-i processing power

Designed for harsh environments
High quality industrial grade power supply
Shock-mount drive bays
Extensive burn-in factory testing
3 year warranty package
Long life industrial motherboard designs
5 to 15 year lifecycle

Amplicon’s range of 3U systems provide the same expansion capabilities of a 4U with a 25% space saving. Our systems are built from industrial grade components and are ideal for any 24/7 critical application.

All of our Impact-R standard systems come backed with our 3 year warranty, with the first year being covered by an on-site next business day service.

All Impact-R models are based on the Intel® chipset technology providing integrated RAID 0, 1, 10, 5, and iAMT.

Amplicon's systems are able to offer 5~15 year life cycle.

6th generation to 14th generation processor options are available.

CPU: Xeon W; Core i3; Core i5; Core i7; Core I9
Chassis Size: 3 U
Memory: 2 GB; 4 GB; 8 GB
OS Support: Linux; Windows 11; Windows 10 IoT; Windows 10; Windows 7; Windows Emb Std 7; Windows XP
Chipset: Intel® Q67; Intel Q670E; W480E; Intel® Q87; Intel® Q170; Intel® Q370
Expansion: PCI; PCIe; mPCIe; M.2
Storage: 256GB M.2; 512GB SSD; 1TB HDD
Memory Type: DDR5; DDR3; DDR4
CPU Generation: 3rd (Ivy Bridge); 4th (Haswell); 6th (Skylake); 8th (Coffee Lake); 10th (Cometlake); 12th (Alder Lake)
Max Memory: 192 GB; 32 GB; 64 GB; 128 GB
Max Operating Temperature: 60 °C; 65 °C
CPU Cores (Physical): 16; 2; 4; 6; 8; 10; 12
Mounting: Rack / Rackable
Chassis depth: Standard depth
Brand: Impact-R
