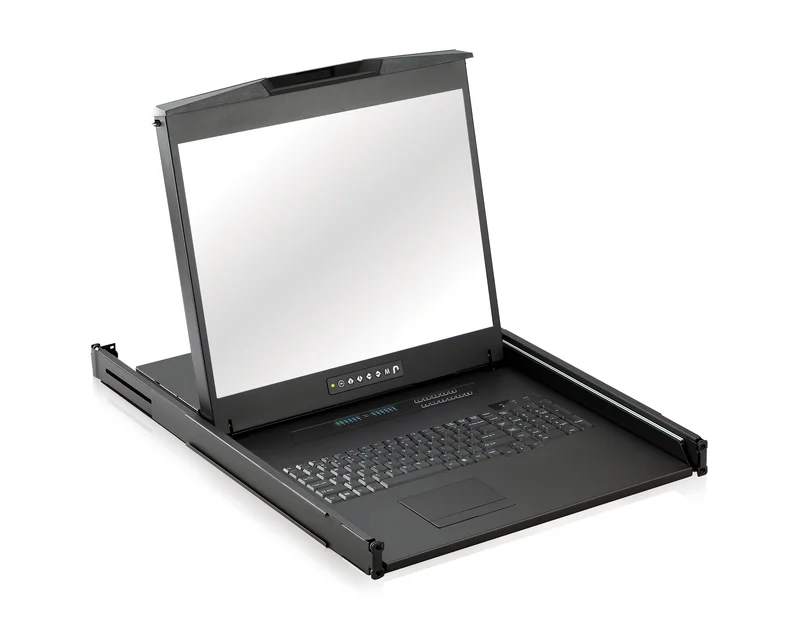

Amplicon KwikDraw-A KVM/Digital series
1U Rackmount LCD console, Digital, KVM functionality
- Maximum power consumption of 48W.
- 104-keyboard with integrated touchpad mouse.
- Moulded front handle with 2 point lock.
The Rackmount digital KVM console drawers offer varied screen sizes and resolutions to suit any application need. The 17HD-12 and 17WHR-12 offer a front USB mount which can be utilised for USB thumb drive for system updates.
All units offer a low power consumption for those green in mind and a low 5W standby.
Easy installation and sleek aesthetic design make this a perfect console of choice.
Options are available without the KVM functionality.
- Mounting
- Rack
- Screen Count
- 1
- Screen Size
- 17 inch
- 20 inch
- Resolution
- High Def
- Standard Def
- 1920 x 1200 (WUXGA)
- KVM Category
- Switch
- KVM Ports
- 12
- KVM Option
- Yes
- Type
- Keyboard and Screen
- kwikdraw-a_17hd-12
- Datasheet 318.17 KB
- kwikdraw-a_17whr-12
- Datasheet 338.19 KB
- kwikdraw-a_20hr-12
- Datasheet 361.61 KB
Models available (3)
Kwikdraw-A 17HD-12
Code 96150620
Kwikdraw-A 17HD-12 : UK (DVI-D & USB) - 17" (1920 x 1080) TFT with KB & Touchpad with 12 port KVM
Kwikdraw-A 17WHR-12
Code 96150622
Kwikdraw-A 17WHR-12 : UK (DVI-D & USB) - 17" (1920 x 1200) wide screen TFT with KB & Touchpad, with 12 port KVM
Kwikdraw-A 20HR-12
Code 96150624
Kwikdraw-A 20HR-12 : UK (DVI-D & USB) - 20" (1600 x 1200) TFT with KB & Touchpad with 12 port KVM
